特點：
1、適用于大規格片劑的壓制?？捎糜谥扑帯⒒?、食品、電子、特種行業等。

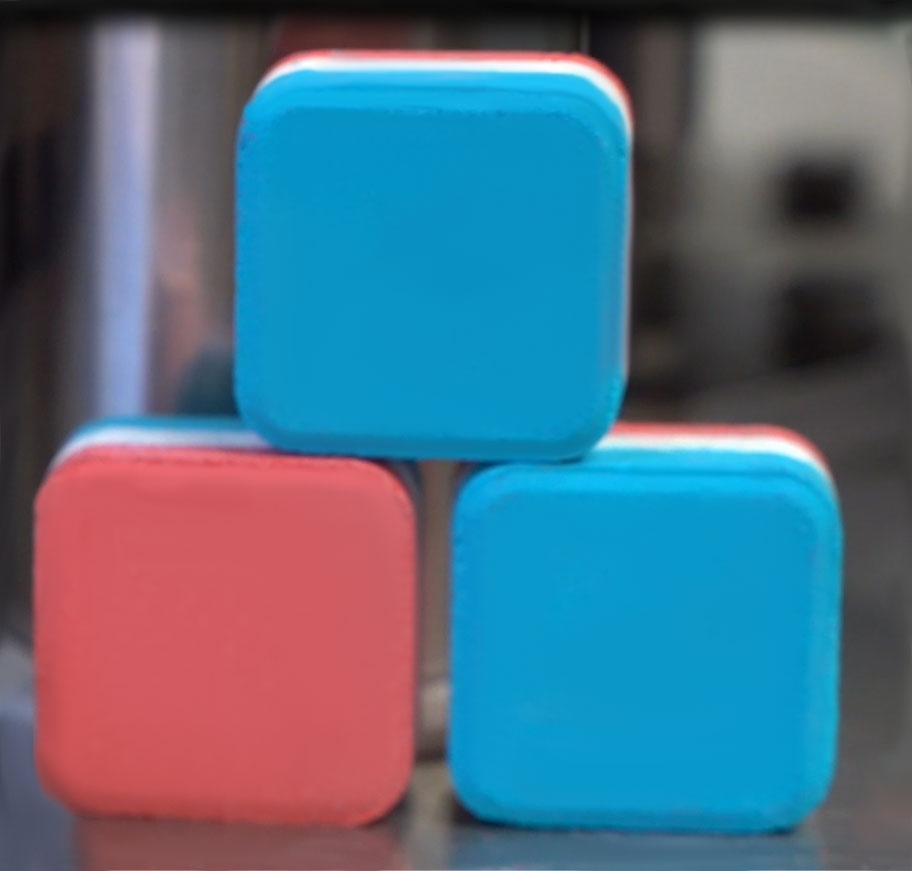

2、ZPYH26 旋轉式壓片機(三色片) 功能齊全，除了能壓制圓形片外，還能壓制異型片、環形片、單層片、雙層片、三層片，以滿足用戶的不同需要。
3、獨特的設計可實現各層等高型多層片壓制。
4、導軌由外側螺釘固定，可方便更換。
1. Suitable for pressing large-size tablets. It can be used in pharmaceutical, chemical, food, electronic and special industries.

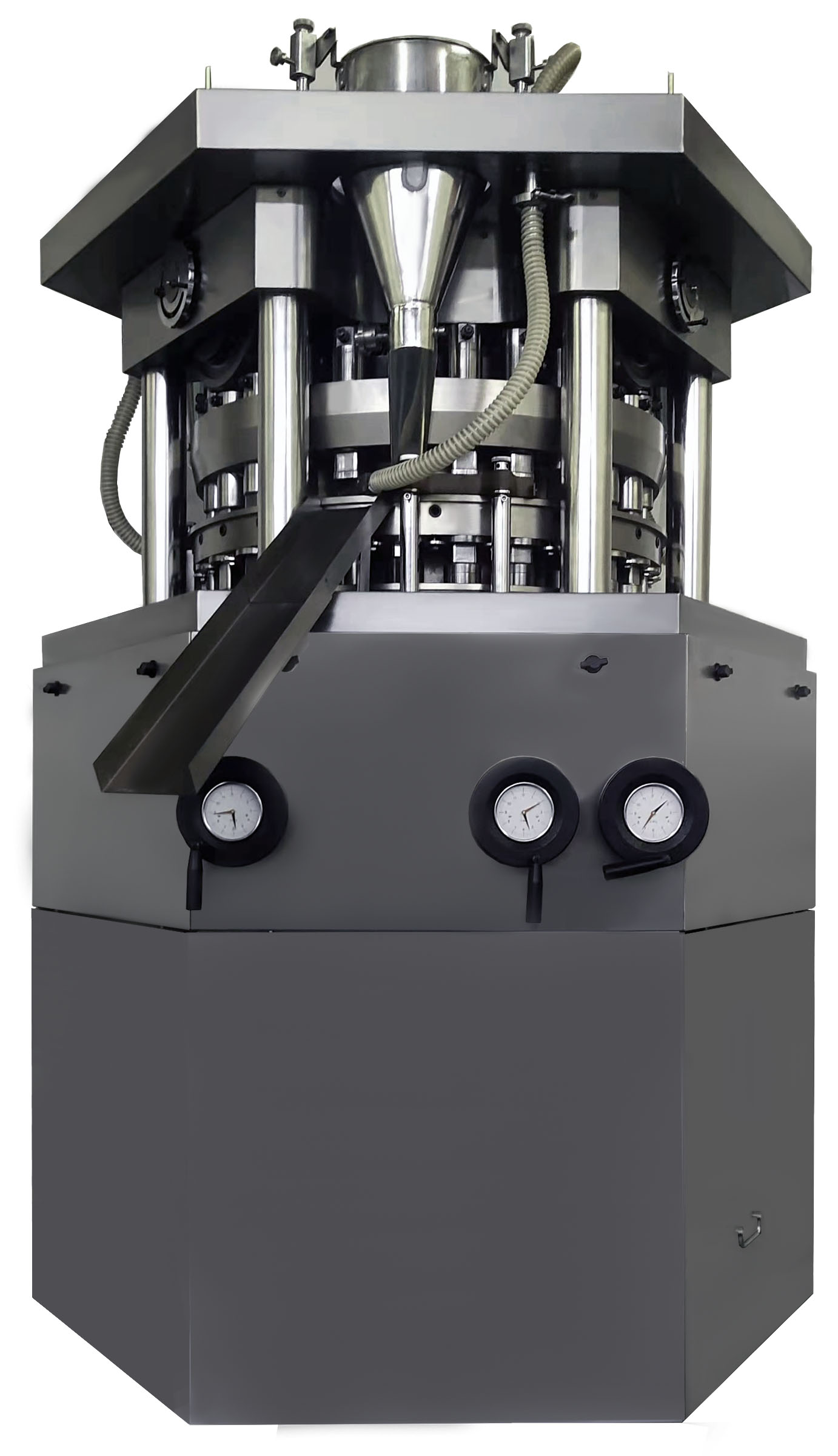

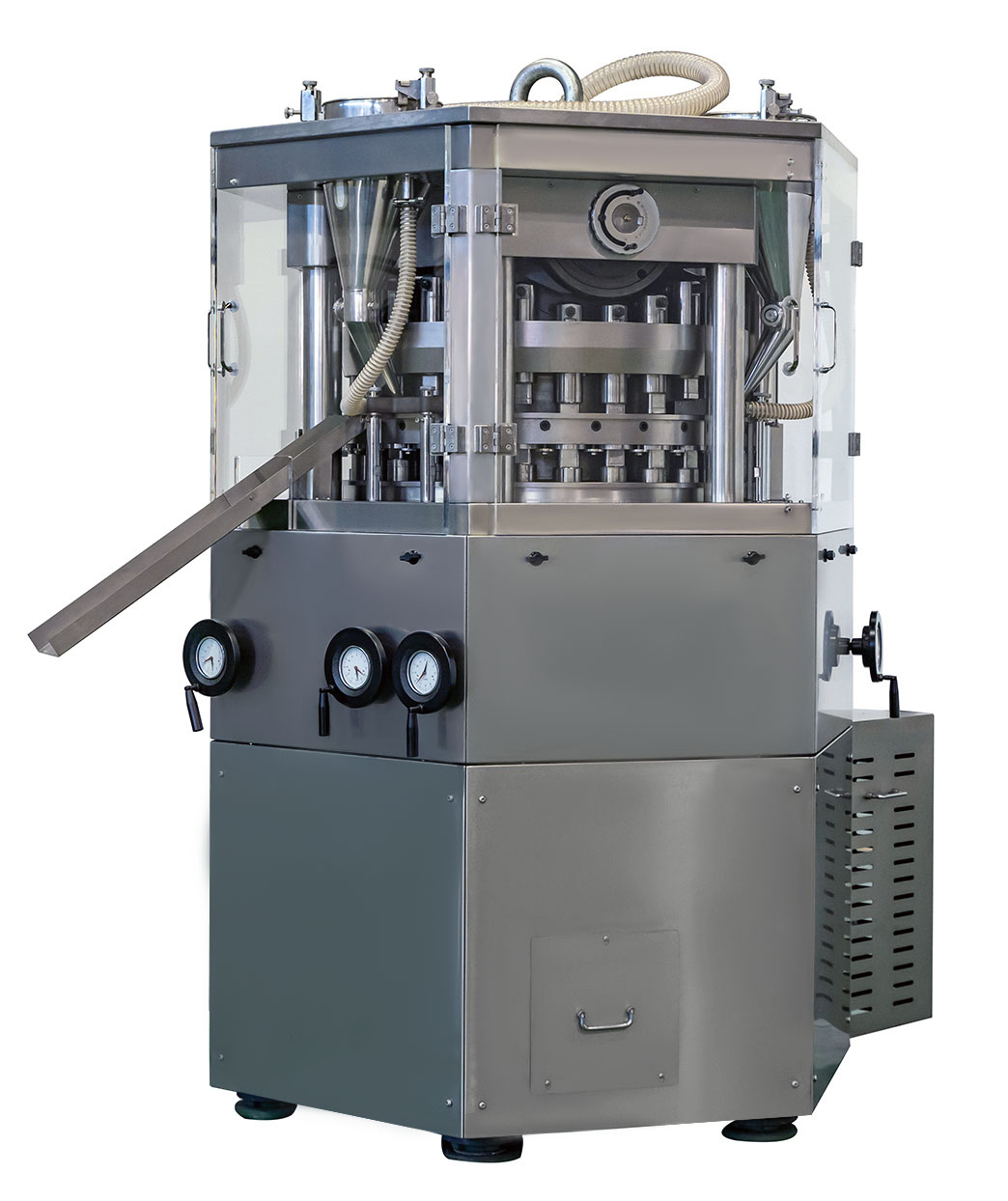

2. ZPYH26 rotary tablet press (trichromatic tablet) is fully functional. It can press not only circular tablets, but also irregular tablets, circular tablets, single-layer tablets, double-layer tablets and triple-layer tablets to meet the different needs of users.
3. Unique design can realize each layer equal in height multi-layer tablet sheet pressing.
4. The guide rail is fixed by the outer screw, which can be easily replaced.
ZPYH26 |
沖頭數目Number of stations | 26 |
模具型號Mould model | 自制Developed by the company |
產量Max Output | tablets/hour | 35000 |
主壓Max main pressure | kN | 300 |
預壓Max pre-pressure | kN | 300 |
片徑Max tablet diameter | mm | φ60 |
充填Max filling | mm | 60 |
片厚Max tablet thickness | mm | 30 |
節圓直徑Node diameter | mm | φ750 |
轉速范圍Rotation speed range | r/min | 22.5 |
機器特性參數Machine characteristic parameter |
尺寸Dimension | mm | 1707*1425*2200 |
重量Weight | kg | 約5000 |
工作電壓Cperating voltage | V | 380 |
主電機功率Main motor power | kW | 11 |
壓縮空氣風量Compressed air volume | m3/h | 600 |
壓縮空氣壓力Compressed air pressure | Mpa | 0.6 |
環境條件Environmental conditions |
相對空氣濕度（非濃縮）Relative air humidity (non-concentrated) | 5-85% |
壓片室溫度Tablet chamber temperature | 5-35℃ |
操作室溫度Operating room temperature | 20-25℃ |
注：表中產量為理論轉速時的產量，實際生產中由于顆粒狀態、片劑壓力、片劑直徑厚度等諸多因素會影響產量。
Note: The maximum output in the table is the output at the theoretical maximum rotation speed. In actual production, many factors such as particle state, tablet pressure, tablet diameter and thickness will affect the output.
