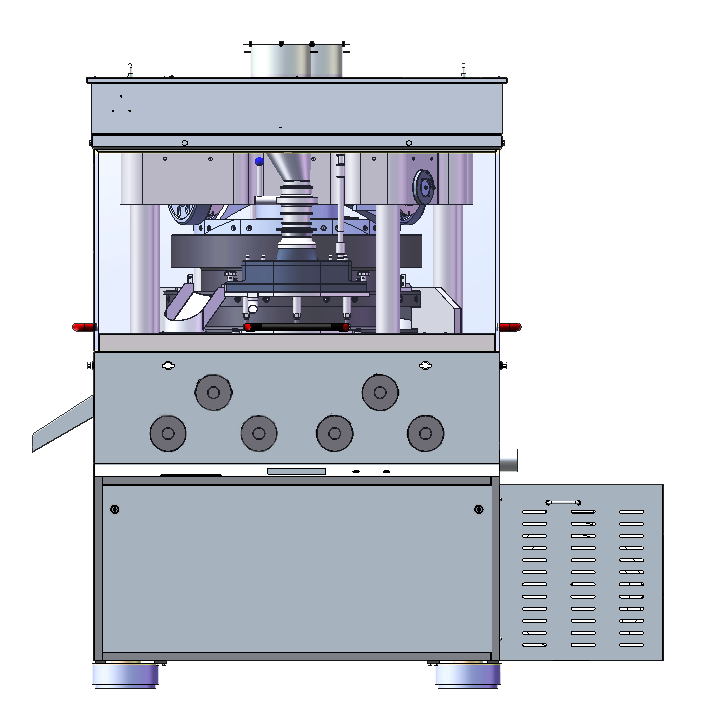

特點：
1、適用于大規格片劑的壓制，可用于制藥、化工、食品、電子、特種行業等。
2、整機模塊化設計，維修保養方便。
3、雙層三葉輪強迫加料器，加料更均勻穩定。
4、符合GMP要求。
5、采用智能中央潤滑系統，保障各潤滑點得到充分潤滑。
1. Suitable for pressing large size tablets,It can be used in pharmaceutical, chemical, food, electronics, special industries, etc.
2. Modular design of the whole machine,Easy maintenance.
3. Double impeller force-feeder, more uniform and stable feeding.
4. Comply with GMP requirements.
5. Intelligent central lubrication system is used to ensure that each lubrication point is fully lubricated.
ZPT27 |
沖頭數目Number of stations | 27 |
產量Max Output | tablets/hour | 32400 |
主壓Max main pressure | kN | 400 |
預壓Max pre-pressure | kN | 100 |
片徑Max tablet diameter | mm | Ф60 |
充填Max filling | mm | 60 |
片厚Max tablet thickness | mm | 20 |
轉速范圍Rotation speed range | r/min | 5～10 |
沖桿直徑Diameter of punch | mm | Ф62 |
上沖桿長度Upper punch rod length | mm | 227 |
下沖桿長度Lower punch rod length | mm | 240 |
機器特性參數Machine characteristic parameter |
尺寸Dimension | mm | 2085×1810×2130 |
重量Weight | kg | 5800 |
工作電壓Operating voltage | V | 380 |
主電機功率Main motor power | kW | 18.5 |
壓縮空氣風量Compressed air volume | m3/h | 600 |
壓縮空氣壓力Compressed air pressure | bar | 6 |
環境條件Environmental conditions |
相對空氣濕度(非濃縮)Relative air humidity (non-concentrated)
| 5-95% |
壓片室溫度Tablet chamber temperature | 5-35℃ |
操作室溫度Operating room temperature | 0-25℃ |
注：表中最大產量為理論最高轉速時的產量，實際生產中由于顆粒狀態、片劑壓力、片劑直徑厚度等諸多因素會影響產量。
Note: The maximum output in the table is the output at the theoretical maximum rotation speed. In actual production, many factors such as particle state, tablet pressure, tablet diameter and thickness will affect the output.
